IAmTheOptimizor Challenge
2022-10-13 edit: This solution is no longer the best solution - the current best was created by Matt Gleason and Noah Citron of a16zOn the afternoon of September 10th, 2022, 0xBeans announced the launch of his "king-of-the-hill optimizor challenge". The idea of the challenge is to implement a gas optimized solution to a variant of the classic 3-sum problem. The challenge has attracted many highly-skilled competitors, and the high-score has been beaten 15 times so far. The current best solution was created by me, and was submitted on-chain with the help of @rage_pit and @samczsun. The idea of this solution is described below.
If you take a look at the code for the challenge you will notice the following:
To see how elaborate the solutions are, consider this bytecode, which was an optimization of a solution by @wireless_anon:This bytecode stores 8 in the second word of memory, and always leaves the third word uninitialized (meaning the third word will be 0, the default value for uninitialized memory). Lastly, this bytecode stores
Up until I submitted my most recent solution, the #1 spot had been ripped away from me 4 different times. I was deep into what many would consider a "nerd-snipe", and I couldn't stop thinking about the problem. After a few days, I eventually came up with the following bytecode:This bytecode will first store
Implementation Details
If you take a look at the code for the challenge you will notice the following:
- To submit a solution, competitors call

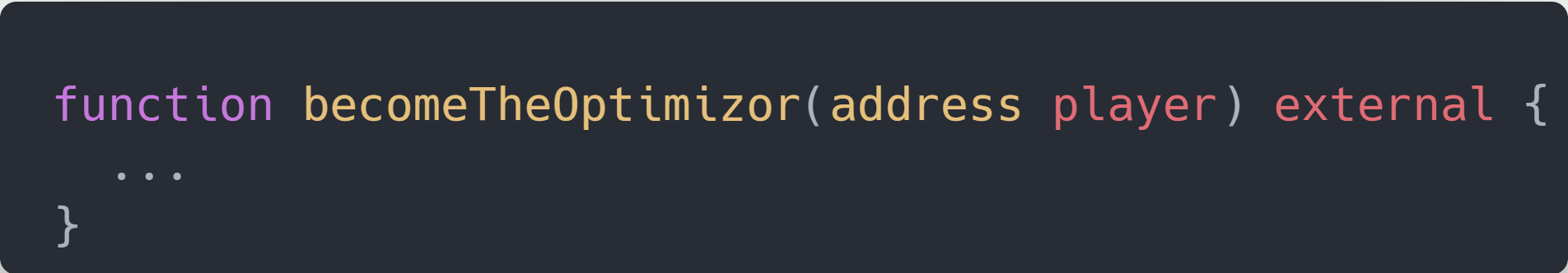

becomeTheOptimizor(address player)
, whereplayer
is the address of their implementation contract. - The contract uses a

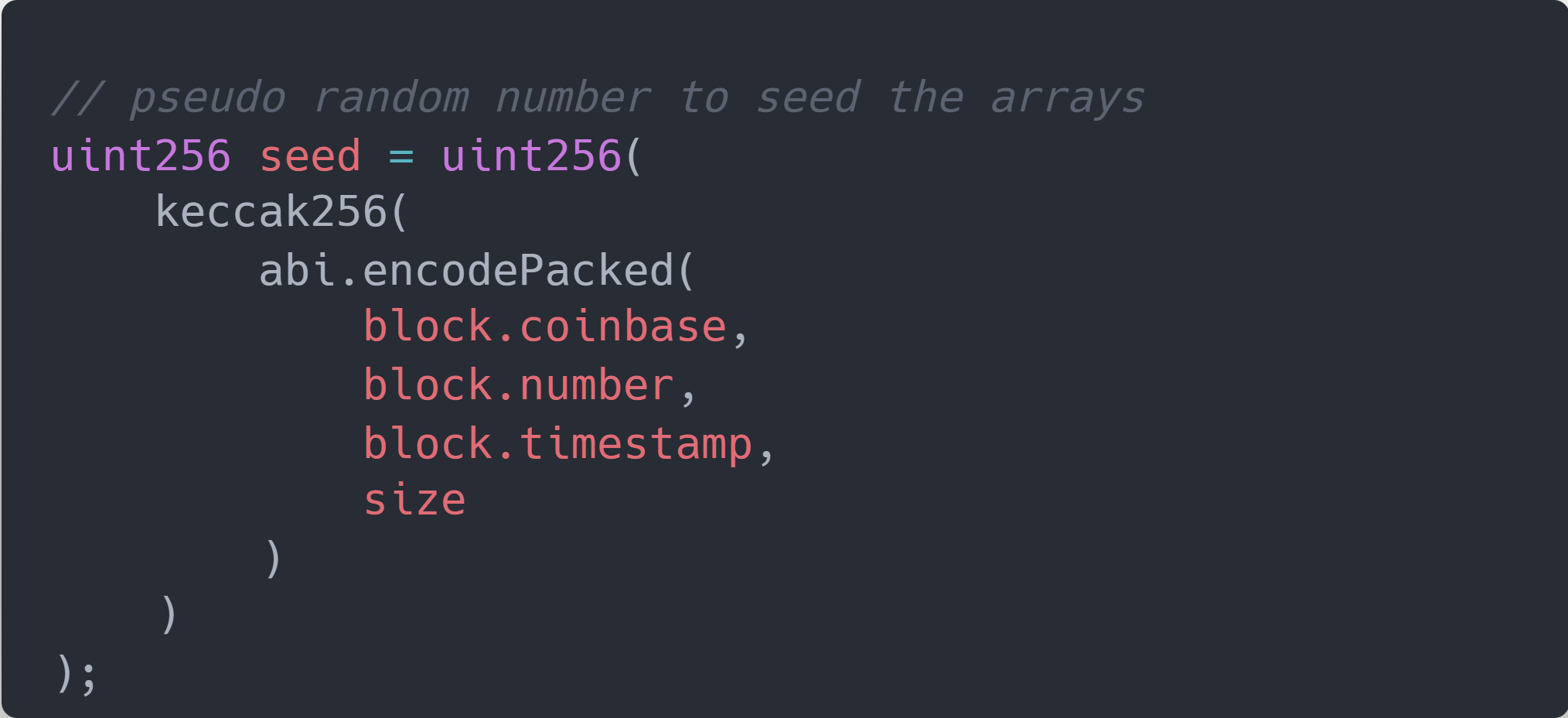

seed
value to create a random instance of the 3-sum problem. Thesize

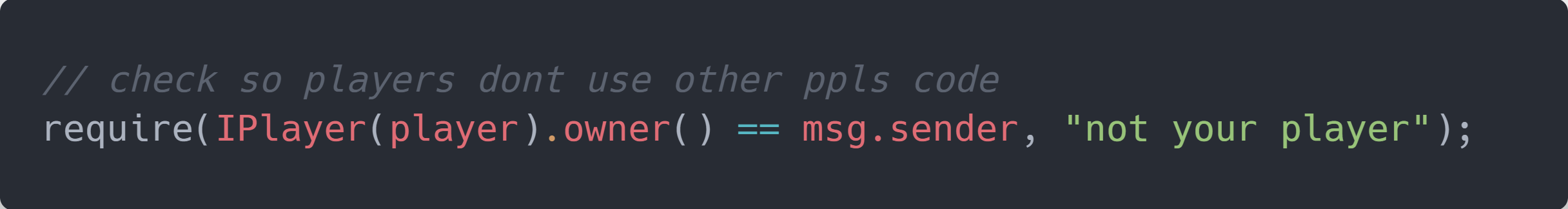

variable here refers to the bytecode size of the solution we are submitting. - To help prevent front-running of solutions, the
player
contract must returnmsg.sender
whenowner()

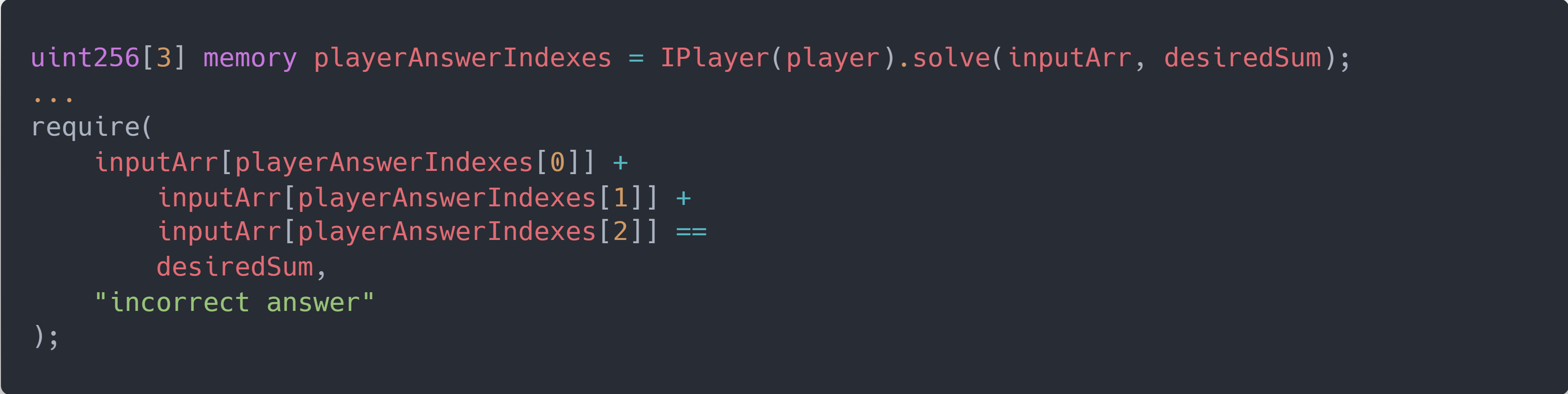

is called on it. - To check the correctness of a submitted solution, the challenge contract will call
solve(inputArr, desiredSum)
on theplayer
contract. This call should return an array of 3 distinct indices, where the sum of the elements ininputArr
at these indices equalsdesiredSum
. - The

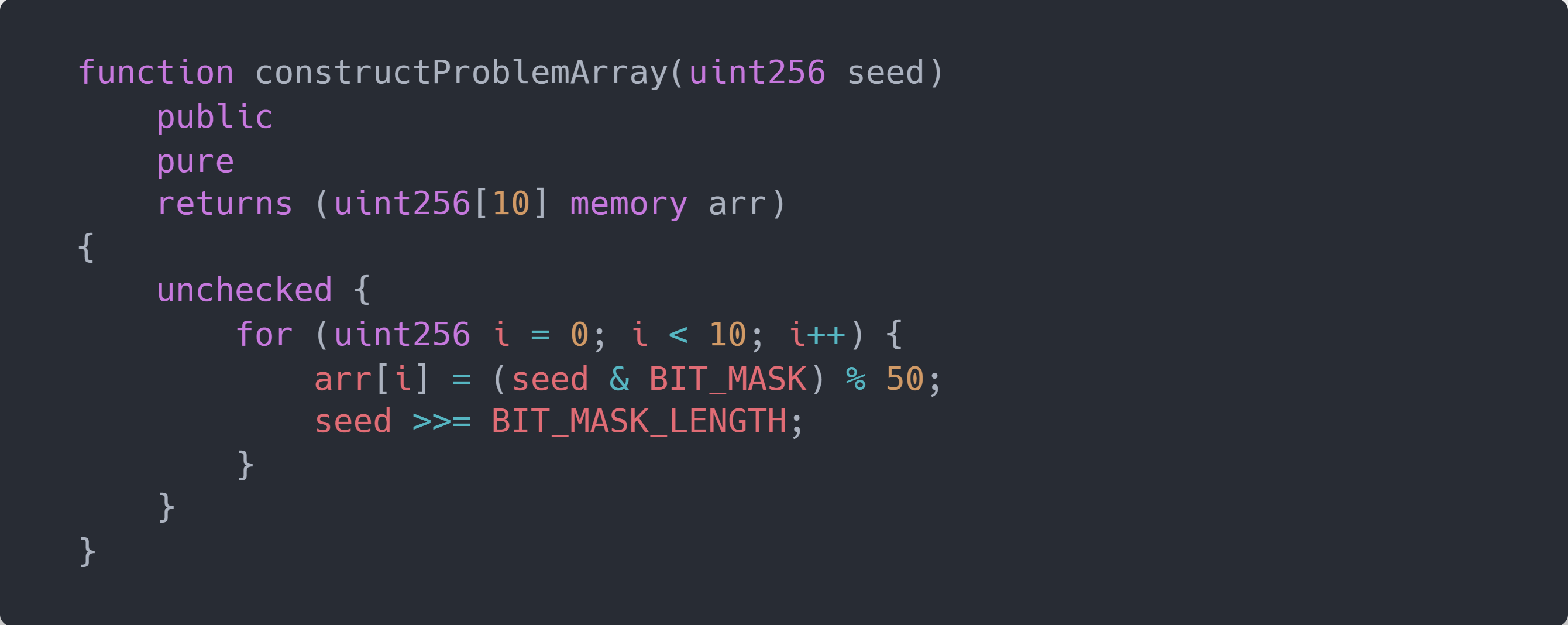

inputArr
will always have 10 elements, all between 0 and 49. This means the correct indices to return will always be three numbers between 0 and 9.
player
bytecode must return msg.sender
(your address) when called with owner()
, and return three distinct numbers between 0 and 9 when called with solve(inputArr, desiredSum)
. Many competitors realized that it would be very efficient to just hardcode these return values and wait for a block that aligns with the hardcoded values. Even though the meta had progressed past the original 3-sum problem, optimizing the hardcoding was still a very interesting problem and many people were still hooked.An example solution

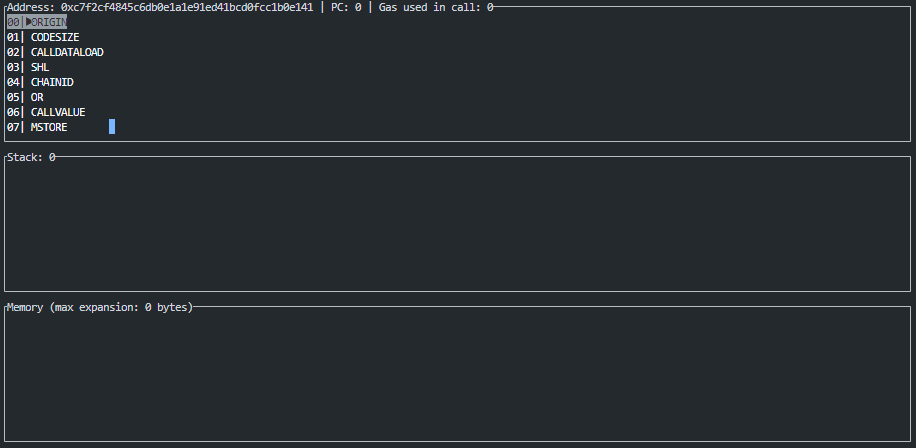

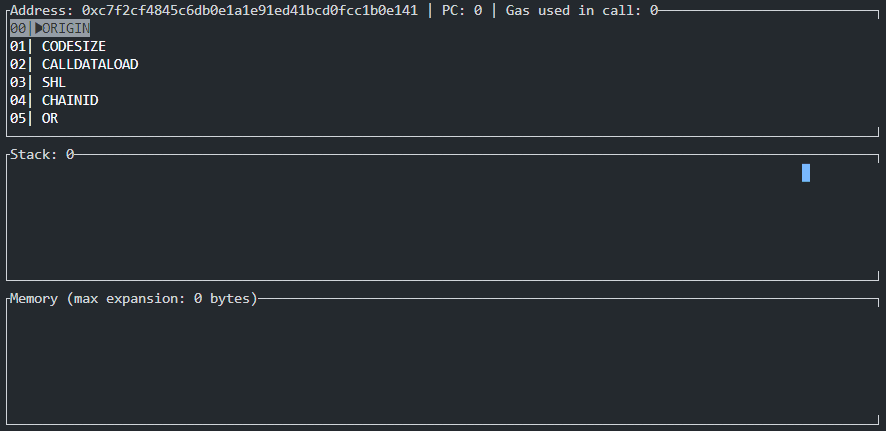

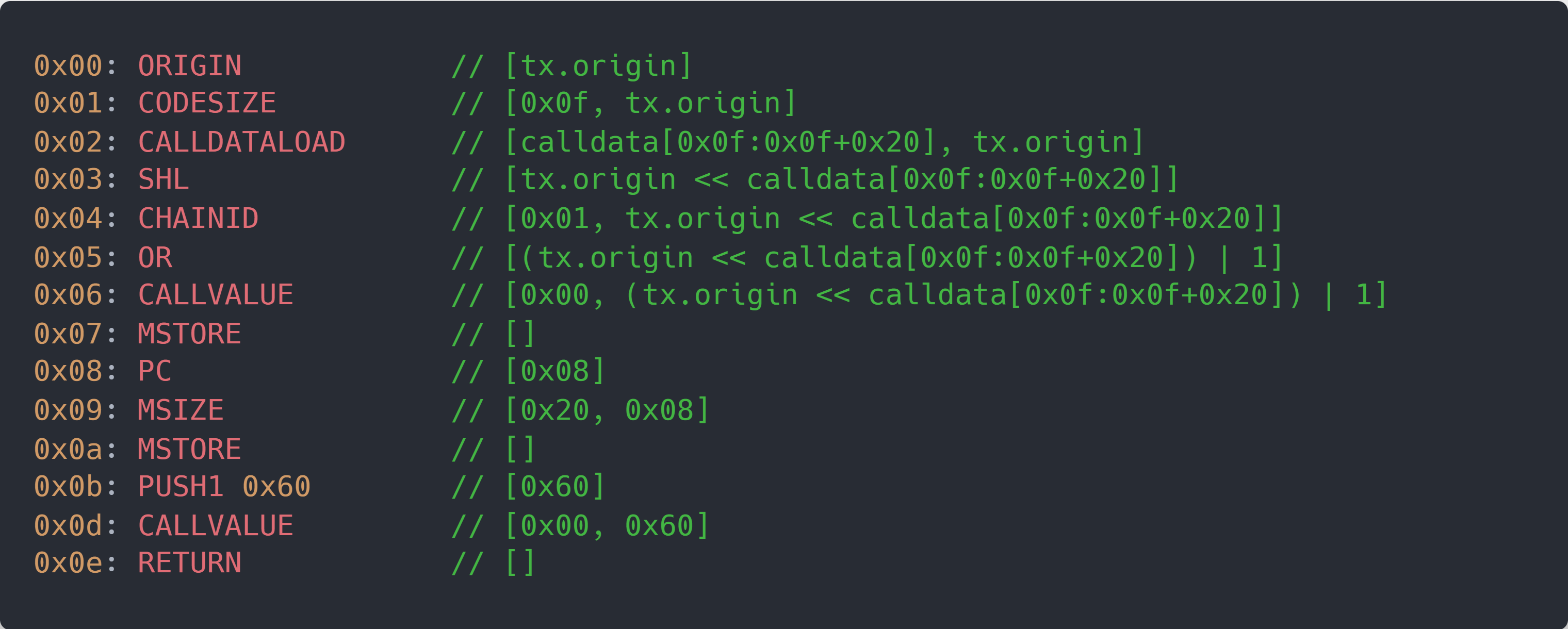

To see how elaborate the solutions are, consider this bytecode, which was an optimization of a solution by @wireless_anon:This bytecode stores 8 in the second word of memory, and always leaves the third word uninitialized (meaning the third word will be 0, the default value for uninitialized memory). Lastly, this bytecode stores
(tx.origin << calldata[0x0f:0x0f+0x20]) | 0x01
in the first word of memory. The idea is:- When
owner()
is called on this bytecode, the calldata will be<owner_4byte_sig>0000000...
, where the zeros extend infinitely (since zero is the default value for unset calldata). This meanstx.origin
will be shifted left by 0 bits (a no-op), andtx.origin | 0x01
will be stored in the first word of the memory. As long as thetx.origin
address has its least significant bit set to 1, theOR
operation will be a no-op and this will pass the challenge'sowner()
check. - When
solve(inputArr, desiredSum)
is called on this bytecode, the calldata will be<solve_4byte_sig><inputArr[0]><inputArr[1]>...
, and sincecalldata[0x0f:0x0f+0x20]
is not word-aligned,calldata[0x0f:0x0f+0x20]
will be a relatively large value. This means thattx.origin
will be shifted left by more than 256 bits (zeroing out the value completely), and thus0x01
will be stored in the first word of memory and[1, 0, 8]
is returned. A competitor can wait until an upcoming block has a seed that leads to this being a correct answer (this should happen with probability 1/120), and then submit in that block to solve the challenge.
My Solution

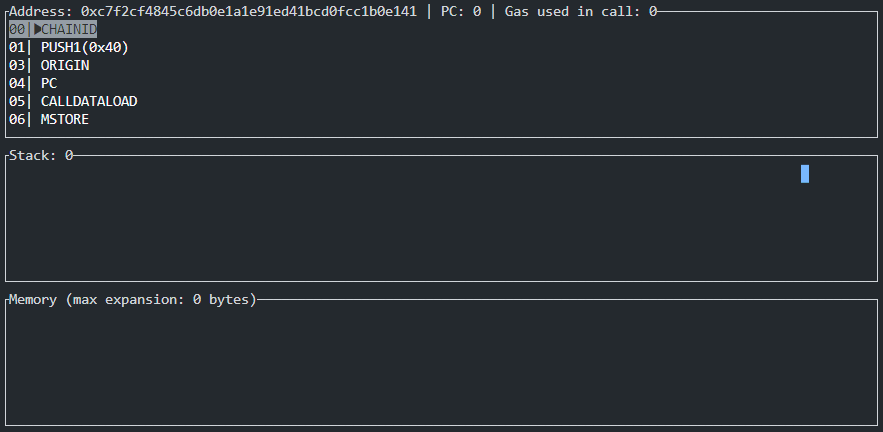

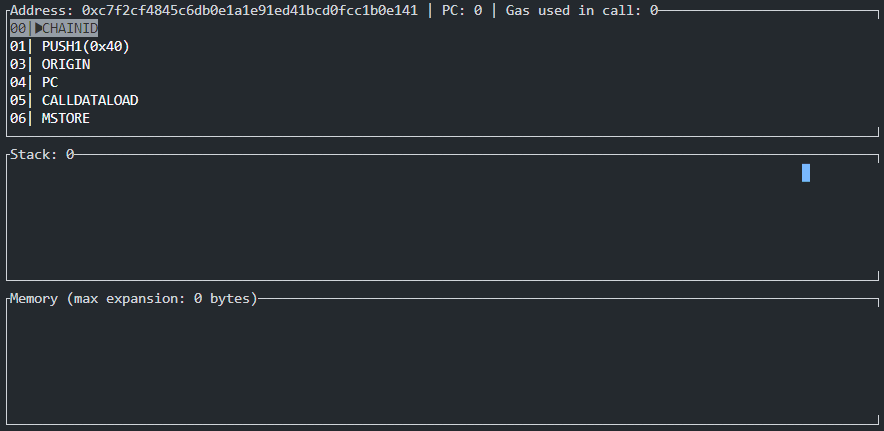

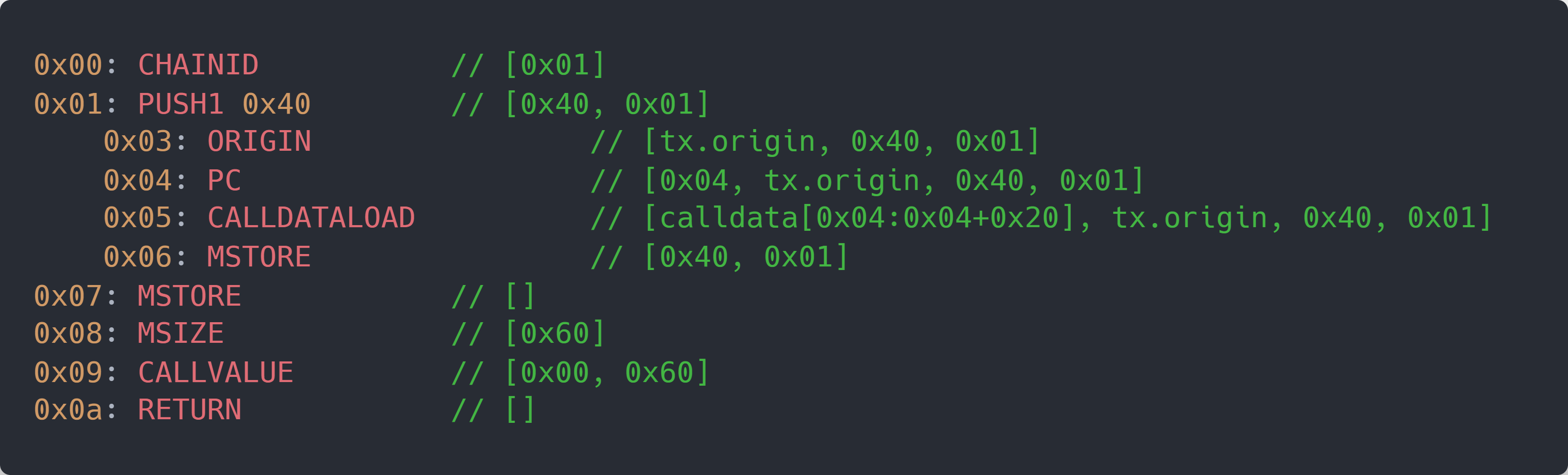

Up until I submitted my most recent solution, the #1 spot had been ripped away from me 4 different times. I was deep into what many would consider a "nerd-snipe", and I couldn't stop thinking about the problem. After a few days, I eventually came up with the following bytecode:This bytecode will first store
tx.origin
in the area specified by calldata[0x04:0x04+0x20]
(aka inputArr[0]
). Then, it will store 0x01
in the third word of the memory (i.e. in [0x40,0x60)
). If we think about the two cases again:- When
owner()
is called on this bytecode,calldata[0x04:0x04+0x20]
will be zero, sotx.origin
will be stored in the first word of the memory. This passes theowner()
check. - Now, when
solve(inputArr, desiredSum)
is called, suppose thatinputArr[0] = 49 = 0x31
. When we storetx.origin
in this location, we be will storing the first0x40 - 0x31 = 15
bytes oftx.origin
in the second word of the memory, and the rest will overflow into the third word. Since the first 12 bytes of addresses are always zero (addresses are 20 byte values), this means that only the first 3 bytes of thetx.origin
value will be in the second word. We can easily grind out an address where the first 3 bytes equals a number between 2 and 9, making the second word in memory a valid distinct index. Since theMSTORE
for0x01
happens after all of this, the overflowed part oftx.origin
will be clobbered by the0x01
value. This means that the returned indices will be[0, tx.origin[0x00:0x06], 1]
, which is potentially a correct answer.
tx.origin
address, we can grind out a corresponding address for each number between 2 and 9. Also, our solution would work just as well if inputArr[0]
was 48 or 47 and our tx.origin
address had one or two more leading zero bytes (inputArr[0] < 47
could also work, but the corresponding addresses had too many leading zeros for us to grind out relatively quickly). After we computed the private keys for these addresses, we had a script watch for upcoming block proposers registered with mev-boost. These blocks will have predictable block.timestamp
, block.number
and block.coinbase
values (the coinbase would likely be the flashbots builder address). This means that our script could anticipate which upcoming blocks would be valid, and which tx.origin
would be needed to initiate the becomeTheOptimizor(...)
transaction. After our script recognized block number 15716477 had a seed that lead to inputArr[0] = 48
with expected indices [0, 5, 1]
, it built a flashbots bundle using address 0x00000005b9FDaCC947710E88B42522a5Ab5a7B00
. The bundle successfully landed, giving us the new high-score.October 12, 2022
